Indoor Narrow Pixel Pitch LED Display: Complete Guide for Live Events, XR Stages & Broadcast
/An Indoor Narrow Pixel Pitch LED Display is the core visual technology behind today’s live events, broadcast studios, XR virtual production stages, and large-scale concerts. As pixel pitch becomes finer (P1.2, P1.5, P1.8), expectations for camera performance, grayscale accuracy, and refresh rate stability increase dramatically.
However, when used for live filming or XR production, LED screens must meet much higher technical standards than ordinary indoor displays.
In this complete guide, we will answer the most searched industry questions:
- How to avoid moiré effect on LED screens during live events?
- What refresh rate is needed for indoor LED displays on camera?
- Why is high grayscale important for fine pitch LED screens in concerts?
- What is the best LED screen for XR virtual production stages?
By the end of this article, you will understand how to choose a professional Indoor Narrow Pixel Pitch LED Display for broadcast-level applications.
How to Avoid Moiré Effect on LED Screens During Live Events?
The moiré effect is one of the biggest challenges when filming an Indoor Narrow Pixel Pitch LED Display.
What Is Moiré Effect?
Moiré effect occurs when the camera sensor grid interferes with the LED pixel grid, creating unwanted wave-like or ripple patterns on screen.
It is especially noticeable when:
- Shooting fine pitch LED screens
- Using high-resolution cameras
- Zooming in on LED backgrounds
- Filming XR stages
Key Methods to Avoid Moiré Effect
1. Choose Smaller Pixel Pitch (P1.2 or Below)
The smaller the pixel pitch, the denser the LED pixels, reducing interference with camera sensors.
| Pixel Pitch | Moiré Risk Level |
|---|---|
| P1.8 | Medium |
| P1.5 | Low |
| P1.2 | Very Low |
| P0.9 | Minimal |
Rigard Indoor Narrow Pixel Pitch LED Display solutions include P1.2 and P1.5 models designed for close-viewing and broadcast environments.
2. Increase Camera Distance
Moiré reduces as camera distance increases.
Recommended:
- Keep camera at least 2–3x minimum viewing distance
- Avoid extreme zoom
3. Use Proper Camera Settings
Adjust:
- Shutter speed
- Aperture
- Sensor resolution
- Frame rate alignment
Matching camera frequency with LED refresh rate reduces artifacts.
4. Choose High Refresh Rate LED Display
A 3840Hz+ refresh rate significantly reduces camera interference.
Rigard Indoor Narrow Pixel Pitch LED Displays support high refresh configurations suitable for broadcasting and XR stages.
What Refresh Rate Is Needed for Indoor LED Displays on Camera?
Refresh rate is critical for any Indoor Narrow Pixel Pitch LED Display used in filming.
Recommended Refresh Rate Standards
| Application | Minimum Refresh Rate |
|---|---|
| Corporate Live Events | 1920Hz |
| Professional Broadcasting | 3840Hz |
| XR Virtual Production | 7680Hz+ |
| Slow Motion Filming | 7680Hz+ |
For high-end filming, 3840Hz is considered the minimum professional standard.
Why Refresh Rate Matters
Low refresh rate causes:
- Flickering
- Rolling scan lines
- Brightness inconsistency
- Camera banding
High refresh rate ensures:
- Smooth video capture
- Stable grayscale
- Flicker-free slow motion
- Better XR rendering integration
Rigard LED provides indoor LED display solutions optimized for broadcast-level refresh performance.
Why Is High Grayscale Important for Fine Pitch LED Screens in Concerts?
Grayscale refers to how many brightness levels each pixel can display.
For fine pitch Indoor Narrow Pixel Pitch LED Display applications like concerts, high grayscale depth is essential.
What Is Grayscale Level?
Common grayscale levels:
| Grayscale Bit Depth | Brightness Levels |
|---|---|
| 12-bit | 4096 levels |
| 14-bit | 16384 levels |
| 16-bit | 65536 levels |
Higher grayscale means smoother gradient transitions.
Why Concerts Need High Grayscale
Concert lighting changes constantly:
- Sudden brightness shifts
- Dark-to-light transitions
- Dynamic color effects
- Laser integration
Low grayscale causes:
- Color banding
- Washed-out gradients
- Loss of detail in dark scenes
High grayscale ensures:
- Smooth color blending
- Deep blacks
- Accurate skin tones
- Cinematic visual performance
Rigard Indoor Narrow Pixel Pitch LED Display systems are engineered for high grayscale performance, ensuring superior concert visuals.

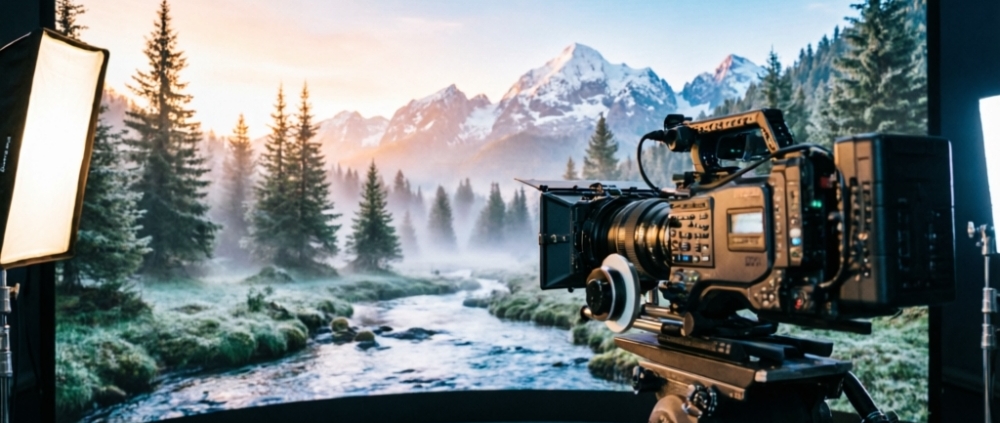

What Is the Best LED Screen for XR Virtual Production Stages?
XR (Extended Reality) production requires extremely precise LED performance.
The best Indoor Narrow Pixel Pitch LED Display for XR must meet the following requirements:
1. Ultra-Fine Pixel Pitch (P1.2 or Below)
XR cameras often shoot at shallow depth of field.
Recommended:
- P1.2 minimum
- P0.9 preferred for premium XR studios
2. High Refresh Rate (3840Hz–7680Hz+)
XR production demands:
- Flicker-free capture
- Seamless frame synchronization
- Real-time rendering compatibility
3. High Grayscale & Color Accuracy
XR scenes involve:
- Complex lighting simulation
- Dynamic reflections
- Virtual background realism
High grayscale ensures accurate virtual environment blending.
4. Seamless Modular Design
Rigard narrow pixel pitch panels (600×337.5mm 16:9 and 640×480mm panels) allow:
- Perfect flatness
- Precise alignment
- Curved XR wall construction
5. Stable Performance & Quality Certification
Rigard conforms to:
- TUV
- EMC
- CE
- RoHS
Quality management includes:
- IQC
- IPQC
- QC
- CFQC
- QA
Ensuring reliability for high-budget XR productions.
Technical Comparison: Standard LED vs Broadcast-Grade Indoor Narrow Pixel Pitch LED Display
| Feature | Standard Indoor LED | Broadcast-Grade Narrow Pixel Pitch |
|---|---|---|
| Pixel Pitch | P2.5+ | P1.2 / P1.5 |
| Refresh Rate | 1920Hz | 3840Hz–7680Hz |
| Grayscale | 12-bit | 14–16 bit |
| XR Compatibility | Limited | Excellent |
| Camera Performance | Moderate | Professional |
Applications of Indoor Narrow Pixel Pitch LED Display in High-End Environments
- Broadcasting studios
- XR virtual production stages
- Concert stages
- Corporate product launches
- Conference rooms
- Control & monitoring centers
- Digital exhibitions
- Cultural immersive experiences
With strong R&D capabilities and global project experience, Rigard has gained significant market share in narrow pixel pitch LED display solutions worldwide.
Why Choose Rigard as Your Indoor Narrow Pixel Pitch LED Display Manufacturer?
Rigard LED is an international LED screen manufacturer specializing in:
- Indoor & outdoor LED display screens
- Large dimension LED display screens
- Stage LED displays
- Broadcast LED solutions
- XR studio LED walls
Main indoor models include:
- P1.2
- P1.5
- P1.8
Advantages:
- Certified quality (TUV, EMC, CE, RoHS)
- Strict 7S management system
- Full production quality control (IQC, IPQC, QC, CFQC, QA)
- Custom large-scale LED solutions
- Global distribution & service support
As a reliable LED display manufacturer, Rigard provides high-performance Indoor Narrow Pixel Pitch LED Display systems engineered for professional broadcast and live event environments.
Frequently Asked Questions (FAQ)
How do I reduce moiré effect on Indoor Narrow Pixel Pitch LED Display?
Use smaller pixel pitch (P1.2 or below), high refresh rate (3840Hz+), proper camera settings, and increase shooting distance.
Is 1920Hz enough for live broadcast?
1920Hz is acceptable for corporate events, but 3840Hz or higher is recommended for professional broadcasting.
What grayscale level is best for concerts?
14-bit or 16-bit grayscale is recommended to achieve smooth color transitions and deep contrast.
What pixel pitch is best for XR stage?
P1.2 minimum. P0.9 is ideal for premium XR virtual production studios.
Why is narrow pixel pitch important for indoor filming?
It reduces moiré effect, improves image sharpness, and ensures better camera compatibility.
Conclusion: Choosing the Right Indoor Narrow Pixel Pitch LED Display for Professional Use
When selecting an Indoor Narrow Pixel Pitch LED Display for live events, broadcast studios, concerts, or XR production stages, technical performance matters more than ever.
Key factors include:
- Pixel pitch (P1.2 / P1.5)
- Refresh rate (3840Hz+)
- Grayscale depth (14–16 bit)
- Camera compatibility
- Seamless modular design
- Certified reliability
For high-end professional environments, investing in broadcast-grade narrow pixel pitch LED display technology ensures superior visual impact and long-term performance stability.
Upgrade Your Live Event or XR Studio with Rigard Indoor Narrow Pixel Pitch LED Display
Looking for a reliable, high-performance Indoor Narrow Pixel Pitch LED Display for your broadcast, concert, or XR production project?
Rigard LED offers:
- P1.2 / P1.5 / P1.8 indoor solutions
- High refresh rate configurations
- High grayscale precision
- Large dimension custom LED walls
- Certified international quality standards
- Global project experience
Whether you are building an XR virtual production studio, planning a large-scale concert, or upgrading your broadcast stage, Rigard’s engineering team can provide tailored LED display solutions.
